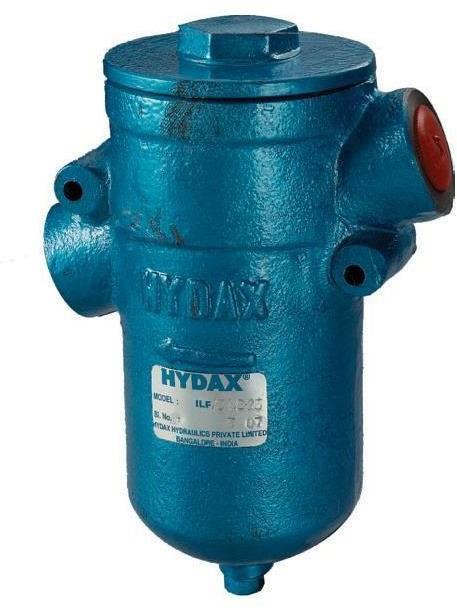

ILF600 2"-BSP
IN LINE FILTER 2" BSP PORT
• The Hydax In-line Filter model ILF is an all-cast construction
and is made from superior grade castings.
• The maximum flow capacity is 600 LPM with fluid viscosity of 80 SSU at 40° C.
• These filters are rated for working pressures upto 20 kg/cm.
• The port connections range from 2”BSP to 3”BSP SAE flange.
• Filter element is available in Stainless steel wire mesh or high impregnated paper filter and 25 microns filtration are standard (Optional is 10 microns).
• Strong ferrite magnets are provided inside the cartridge flow path to arrest ferrous particles. Adequate internal area is provided to minimize pressure drop
+ Packing Charges 2.5% + GST 18% = 65,313
• The maximum flow capacity is 600 LPM with fluid viscosity of 80 SSU at 40° C.
• These filters are rated for working pressures upto 20 kg/cm.
• The port connections range from 2”BSP to 3”BSP SAE flange.
• Filter element is available in Stainless steel wire mesh or high impregnated paper filter and 25 microns filtration are standard (Optional is 10 microns).
• Strong ferrite magnets are provided inside the cartridge flow path to arrest ferrous particles. Adequate internal area is provided to minimize pressure drop
+ Packing Charges 2.5% + GST 18% = 65,313
