2 HUBS + 1 SLEEVE = 1 COUPLING

2 HUBS + 1 SLEEVE = 1 COUPLING

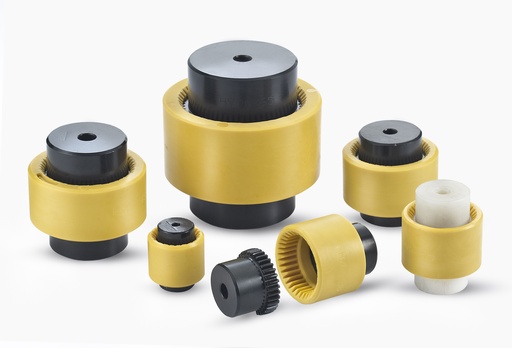

• Flexible Drive Coupling consists of two gear hubs engaging in a sleeve of high grade plastic material.
• This material has superior strength and a wide operating temperature range.
• Couplings are easy to assemble and require no maintenance or lubrication and do not emit transmission noise.
• Gears in the crowned-tooth form permit axial and angular misalignment.
• Available in non-corrosive options of Stainless Steel also.

2 HUBS + 1 SLEEVE = 1 COUPLING

SUCTION STRAINER-160LPM-90MM DIA-1 ½” BSP-GFN CAPS

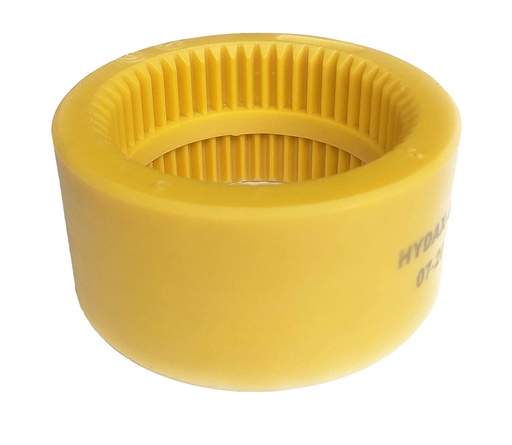

SPARE SLEEVE OF DRIVE COUPLING

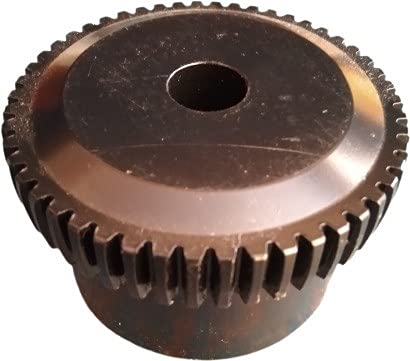

SPARE HUB OF DRIVE COUPLING

METAL HUB MAX BORE 38MM

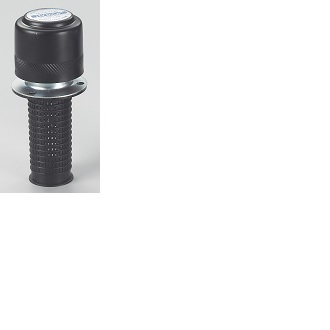

FILLER BREATHER ASSEMBLY 250LPM DISPLACEMENT TANK TOP 40 MICRON FILTRATION

THREADED BREATHER 700LPM DISPLACEMENT 40 MICRON FILTRATION M26

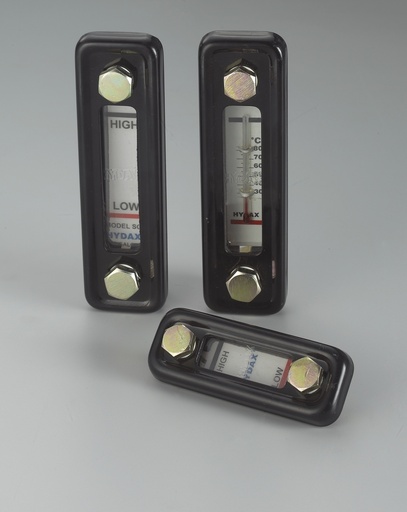

FLUID LEVEL GAUGE 5" GASKET SEALING

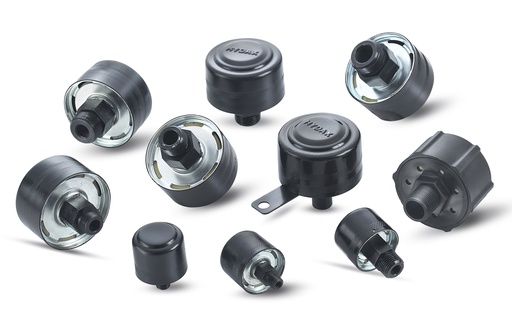

THREADED BREATHER 250LPM DISPLACEMENT 40 MICRON FILTRATION 1/2"BSP

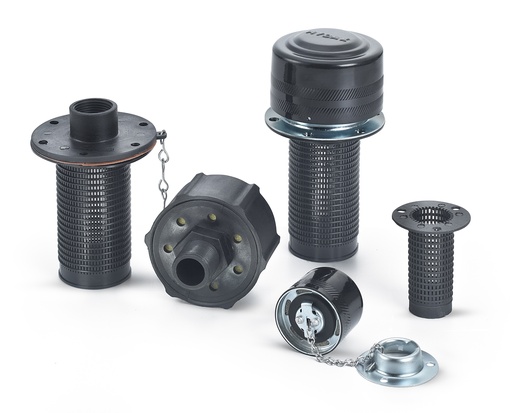

FILLER BREATHER ASSEMBLY 250LPM DISPLACEMENT SIDE MOUNTING 40 MICRON FILTRATION

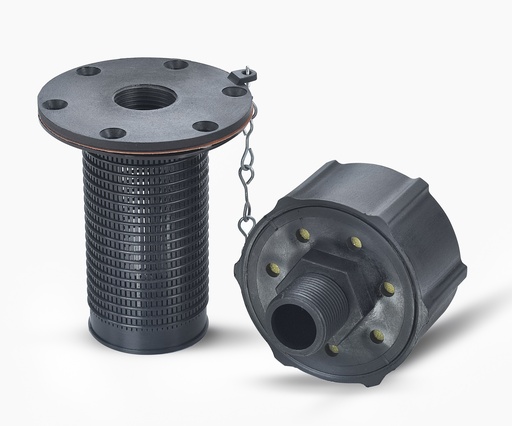

NYLON FILLER BREATHER ASSEMBLY 700LPM DISPLACEMENT TANK TOP 40 MICRON FILTRATION

FLUID LEVEL GAUGE 3" GASKET SEALING

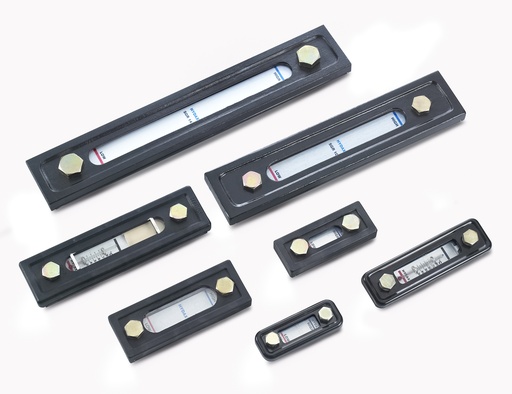

FLUID LEVEL GAUGE 7" O RING SEALING

SUCTION STRAINER-15LPM-63MM DIA-3/4"BSP-GFN CAPS

SUCTION STRAINER-30LPM-63MM DIA-3/4"BSP-GFN CAPS

SUCTION STRAINER-60LPM-63MM DIA-1"BSP-GFN CAPS

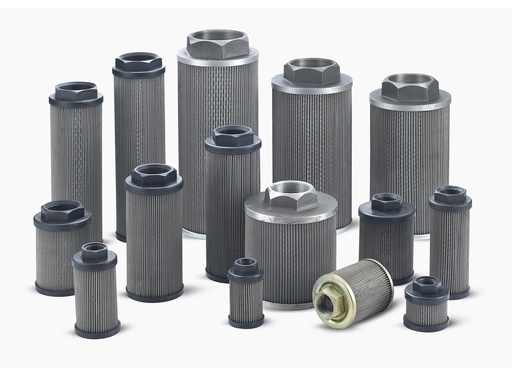

SUCTION STRAINER-200LPM-90MM DIA-2” BSP-GFN CAPS

SUCTION STRAINER-250LPM-90MM DIA-2” BSP-GFN CAPS
