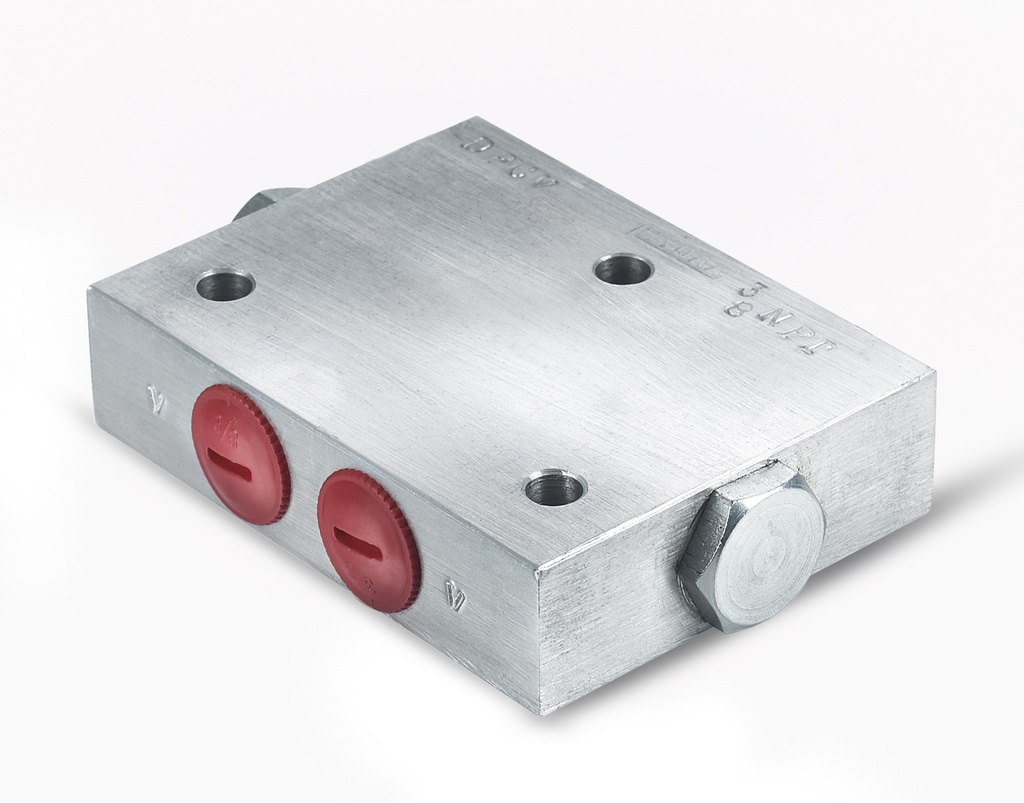

DPCV - 03 T 3/8" BSP
DOUBLE PILOT CHECK VALVE 3/8" BSP
• Extruded Aluminium alloy body.
• Internal parts are hardened steel.
• Maximum flow rate is 30 LPM.
• Maximum working pressure tested to 210 Kg/cm².
• Ratio is 4:1.
• Ports are 3/8” NPT or ½” BSPT.
• These valves are used to block the cylinder in both directions. Flow is free in one direction and blocked in the reverse direction until pilot pressure is applied.
• Ball and seat mechanism is used in operation.
• The directional valve cylinder ports should be connected to the tank in the center condition.
+ Packing Charges 2.5% + GST 18% = ₹ 6,567
